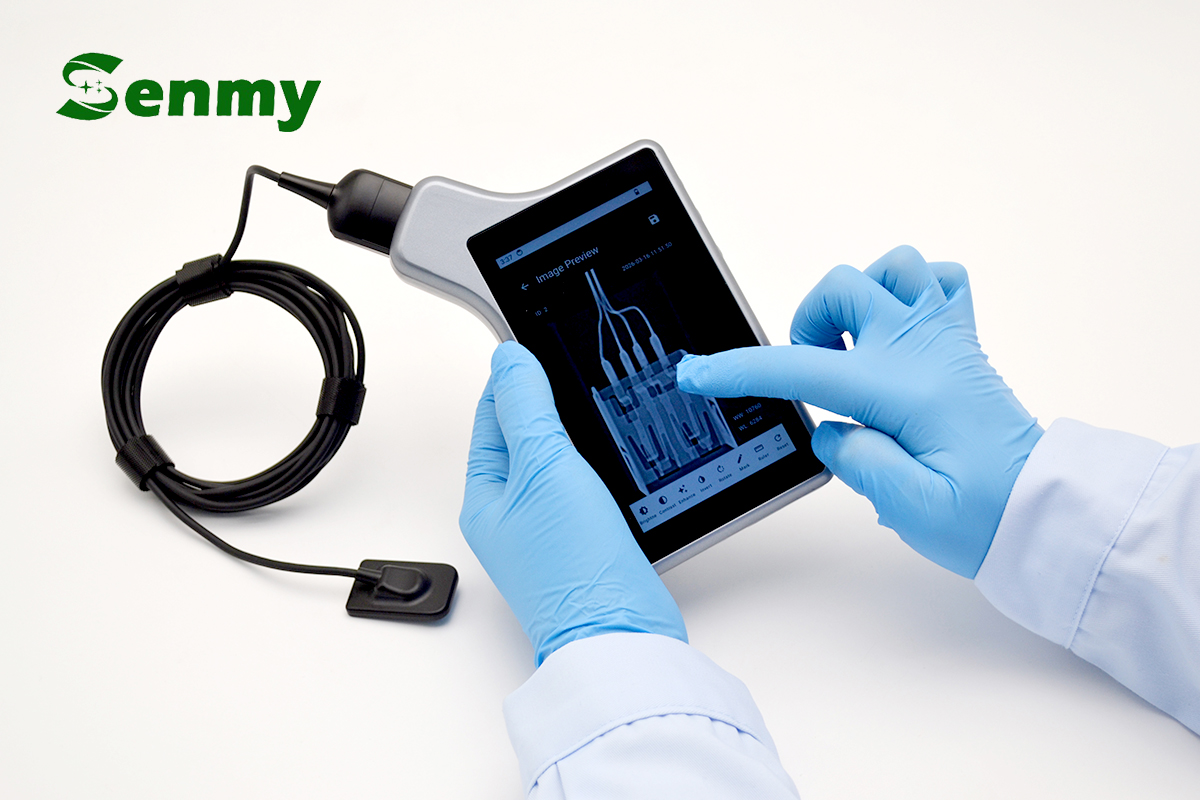

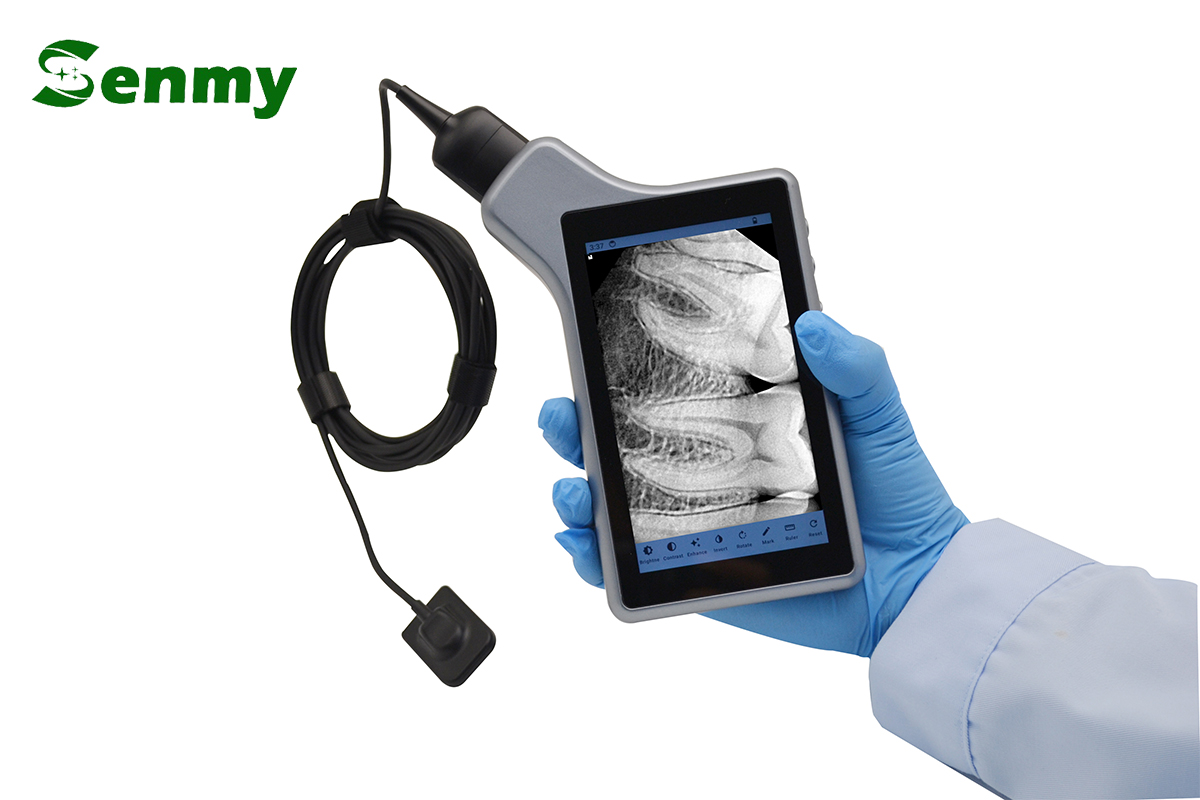

S804Pro Portable Digital Imaging System

S804Pro Portable Digital Imaging System

Technical Specifications

Pad:

System: Android With Professional Dental Imaging Processing Software
Display Size: 5"
Resolution: 720*1280
Ram: 3GB
Storage: 32GB+TF(256GB)
Battery: 5000mAh
Connectivity: Type-C+USB2.0 And Bluetooth+Wifi
Carton packing(1 pcs): 21.5x14.5x5.5cm, 0.5kg

Sensor:

Mechanical Dimensions(mm³): 25.0×38.5×4.5;  31.0×40.0×4.5
Effective imaging area(mm²):  20×30;  26×36
Pixel Matrix:   (1.5M)1000×1500;  (2.34M)1300×1800
Sensor type: APS CMOS
Scintillator type: DIRECT-GROWTH CESIUM IODIDE
Pixel size (μm): 20
Spatial resolution (lp/mm): In theory: 25 lp/mm; Actual: 14-16 lp/mm (High sensitivity) 18-20 lp/mm(high resolution)
Gray scale: 16bits
Exposure mode: SMART AED mode
Protective grade: IP68 for Soak disinfection
Carton packing(1 pcs): 21×15×8cm, 0.5kg
Carton packing(2 pcs): 21×15×8cm, 0.75kg
