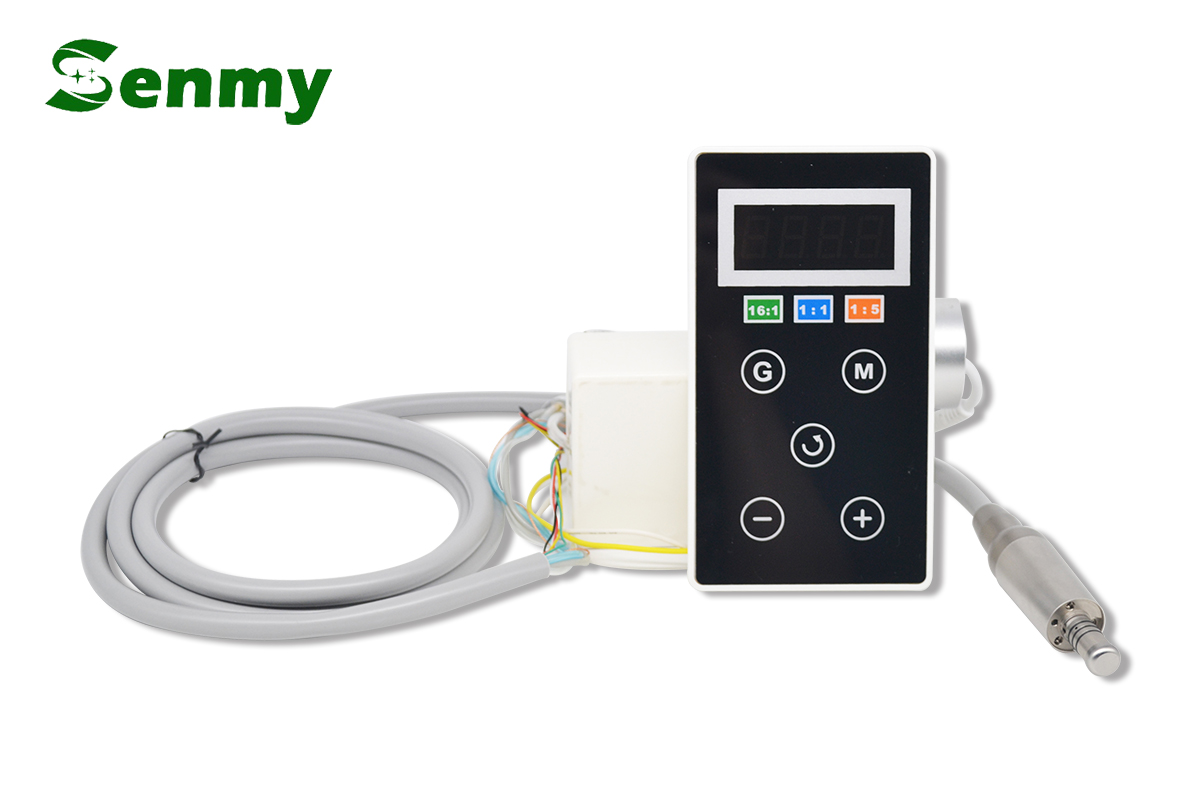

Built-in Electric Motor Inner Spray with Light
1. Specification
Power supply
Input: 24V
Current: 2.5A(MAX)
Motor
Working mode: Forward/reversing.
Speed range: 2000-40,000rpm
Max torque: >1N.cm
Sterilization method: 121℃ 20 mins/132℃ 15mins.
Motor size: Diameter 21*Height 70mm
Control unit
Work air pressure: 2-4kgf/cm²
Control unit size: 15cm
7cm3.8cm

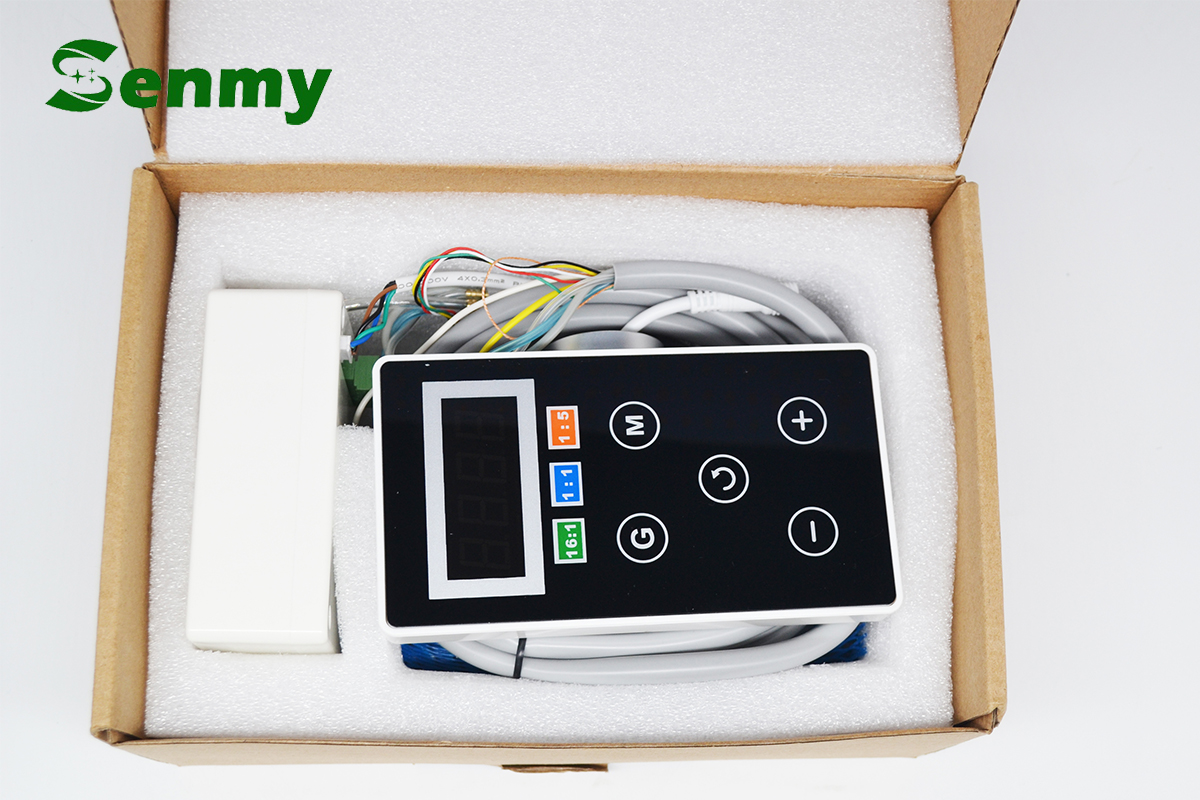

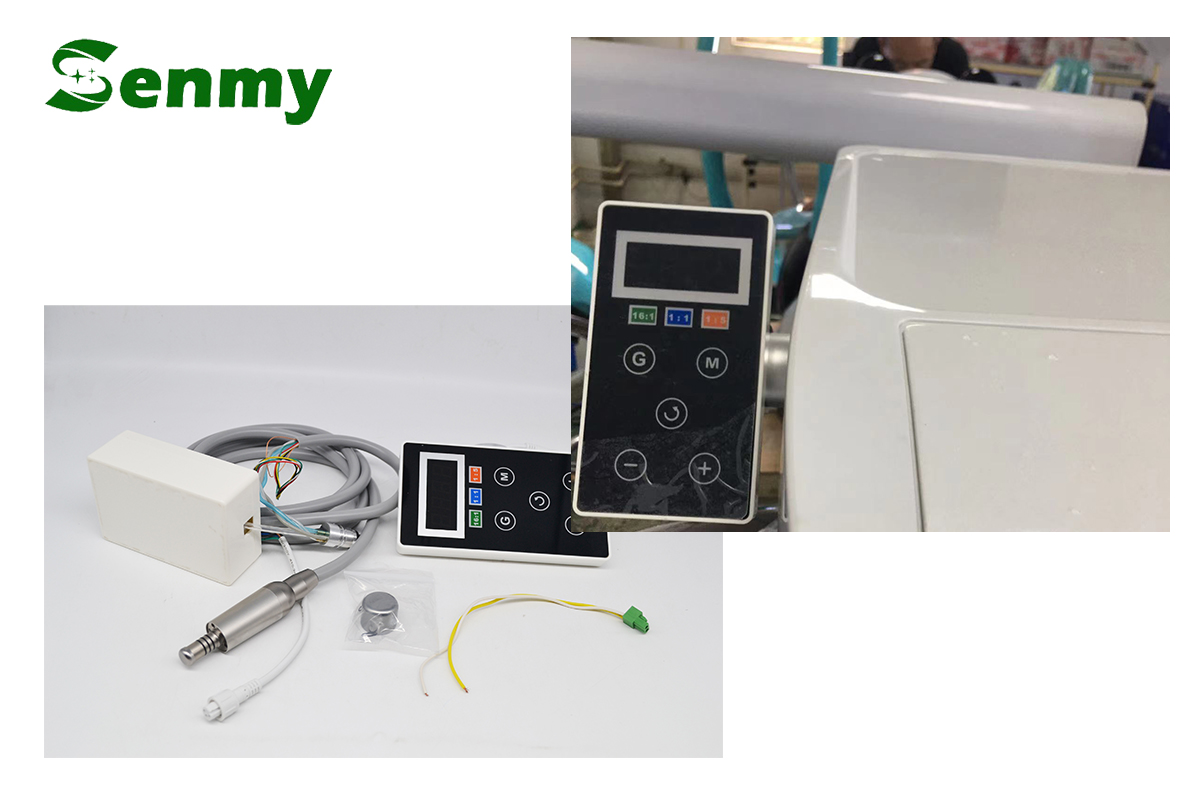

2. Package list
Package size: 25cm17cm9.5cm
-
Control Panel: 1 PC
-
Control unit: 1 PC
-
Electric Motor: 1 PC
-
Motor Hose: 1 PC
-
Bracket: 1 PC
-
User Manual: 1 PC
Chinese
English
