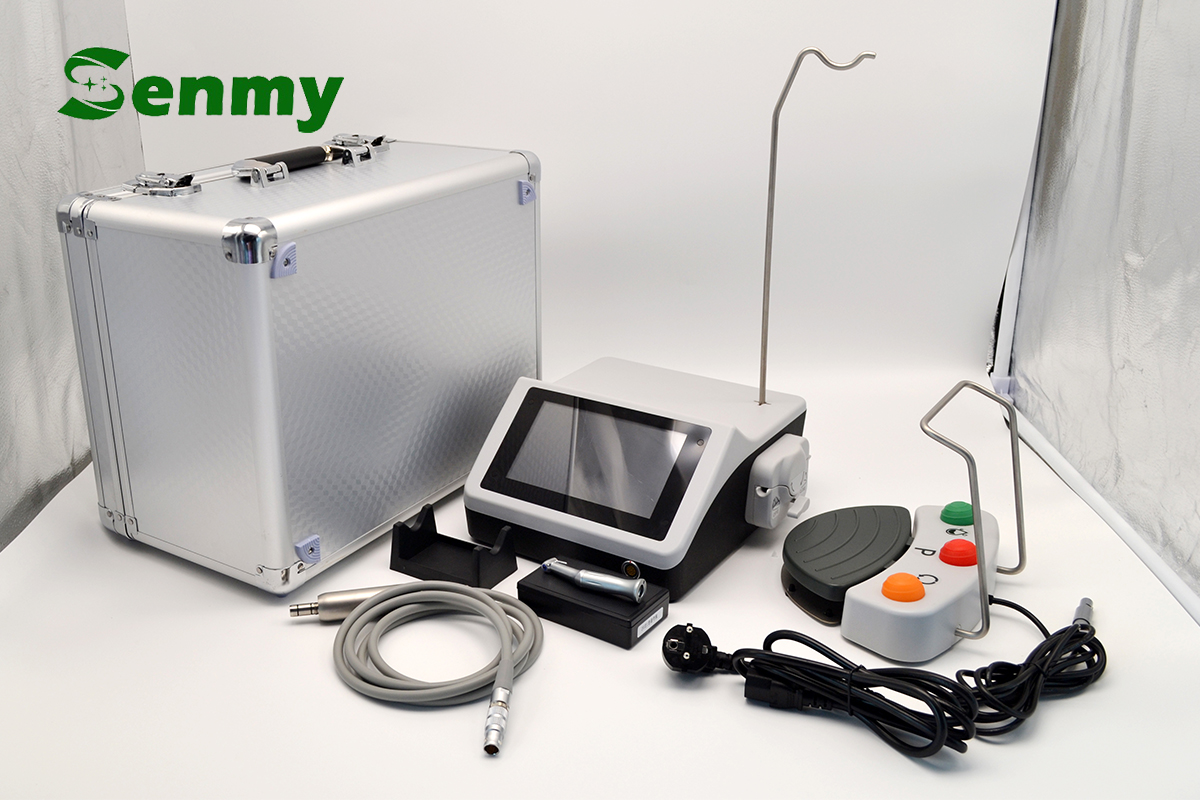

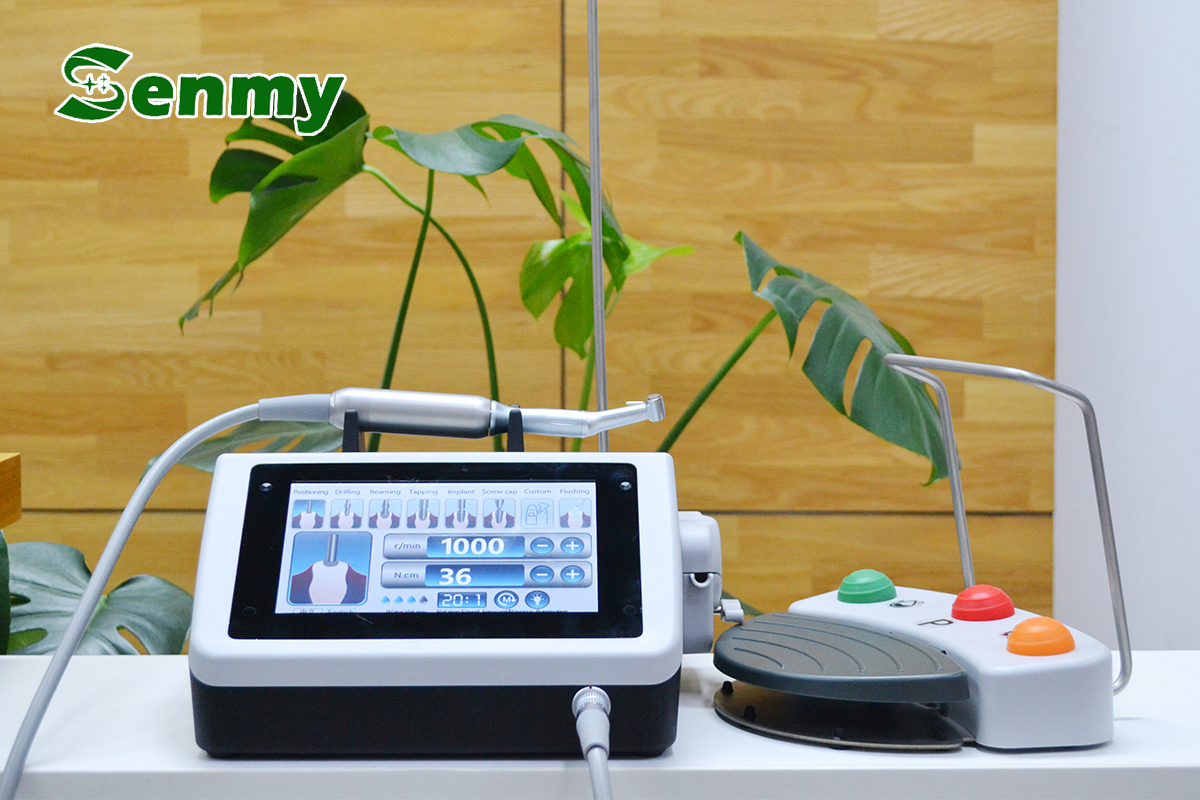

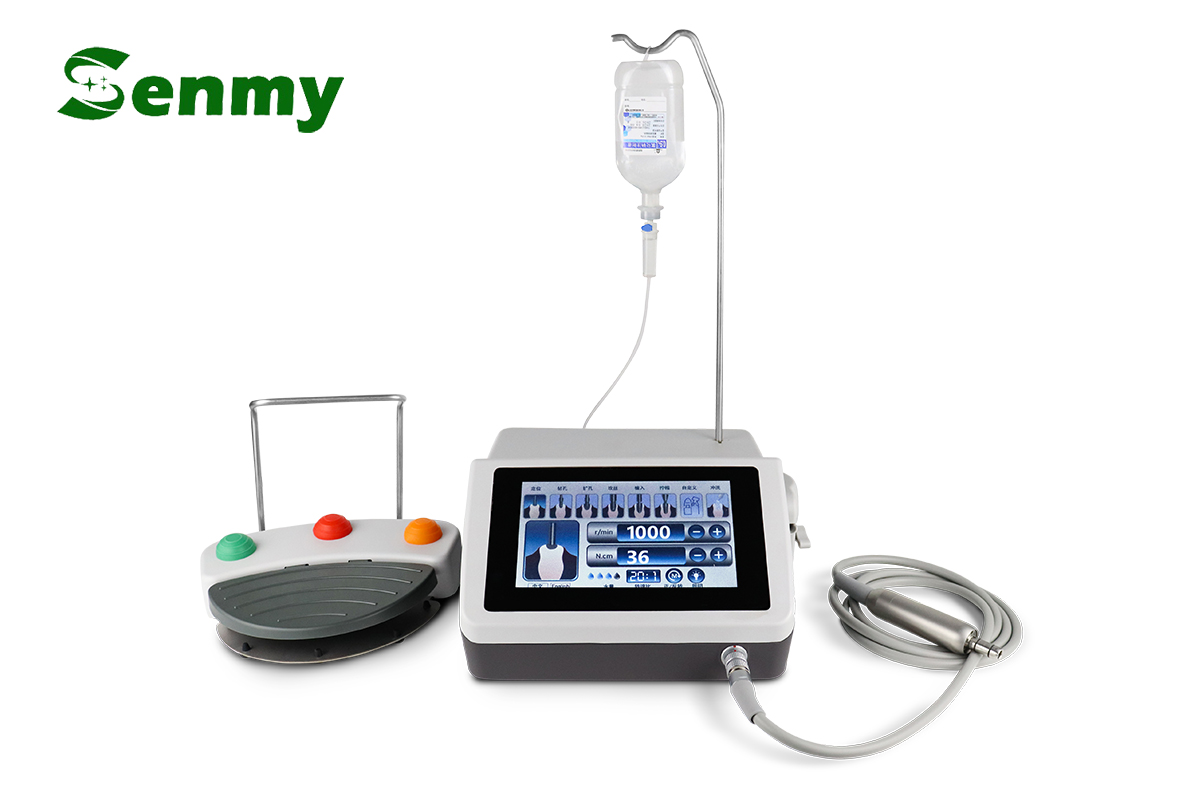

M402A Implant System LED

M402A Implant System LED

Host Specification Parameters:

Voltage: AC 220 V
Frequency: 50 Hz/60 Hz
Maximum Power Consumption: 150 VA

Dimension(mm)(W*D*H): 280x260x135

Operating Environment:

Ambient Temperature Range: +5~40℃
Relative Humidity Range: 30%~75%
Atmospheric Pressure Range: 70kPa~106kPa

Motor Specification Parameters:

Rotational Speed Range: 300-40,000rpm
Torque Range: 5-70Ncm(Gear Ratio 20:1)
Input Voltage: DC36V

Size: Diameter: 24mm, Length: 110mm, Tail wire length: 1.8m
