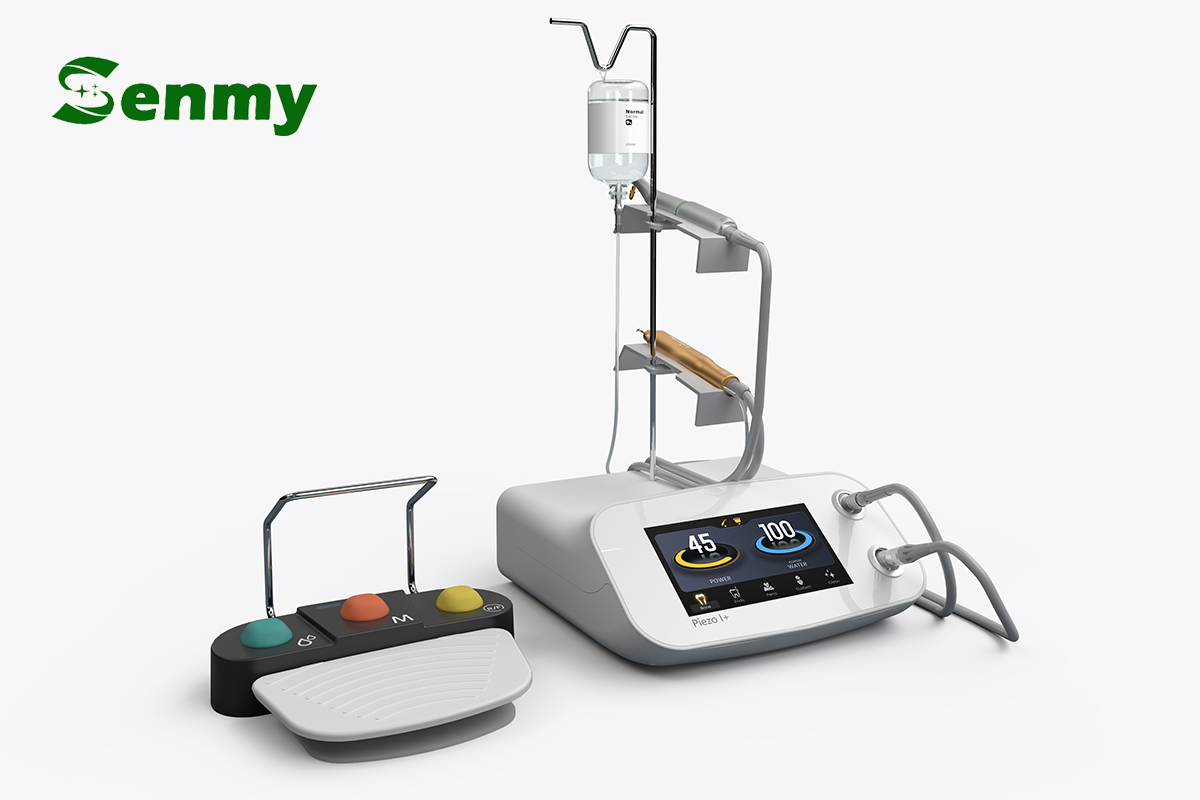

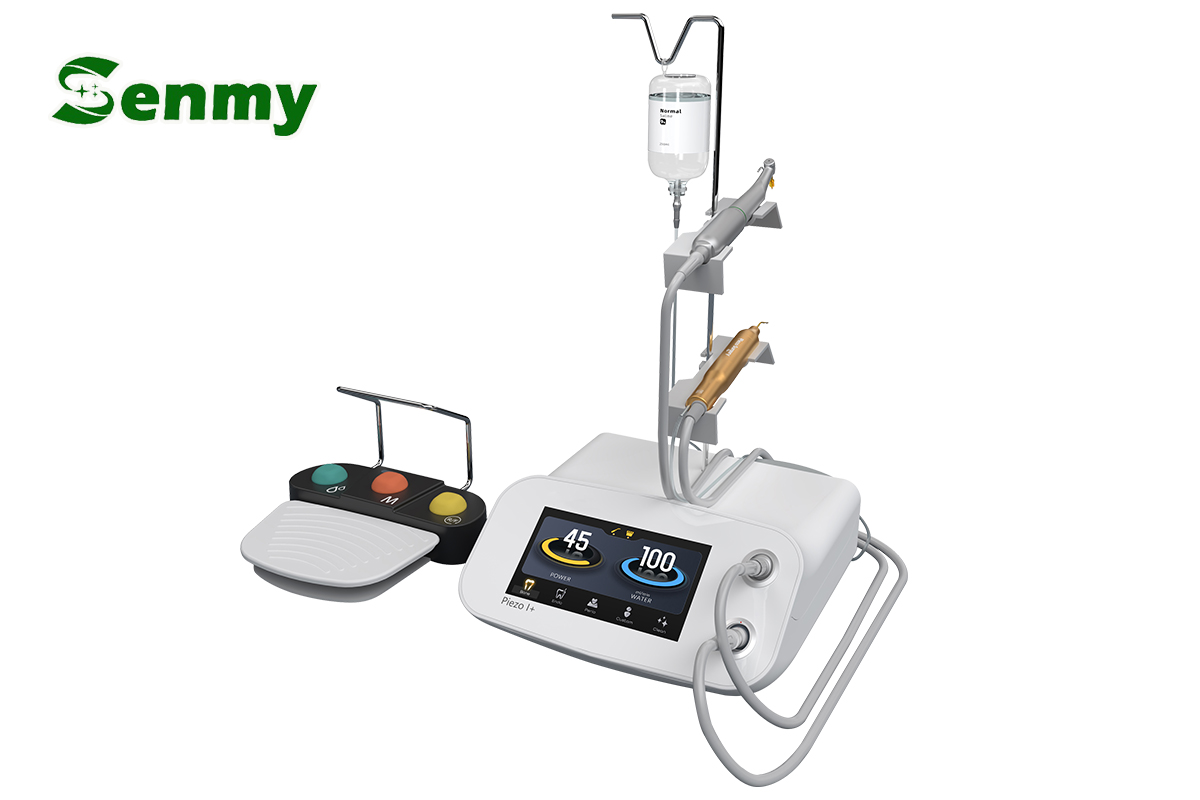

M406A Ultrasurgery &LED Implant System

M406A Ultrasurgery &LED Implant System

Configuration List:

· Main Unit: 1 set

· Bluetooth Foot Pedal: 1 piece

· Osteotome Handle: 1 piece

· 20:1 Implant Contra Angle (with light): 1 piece

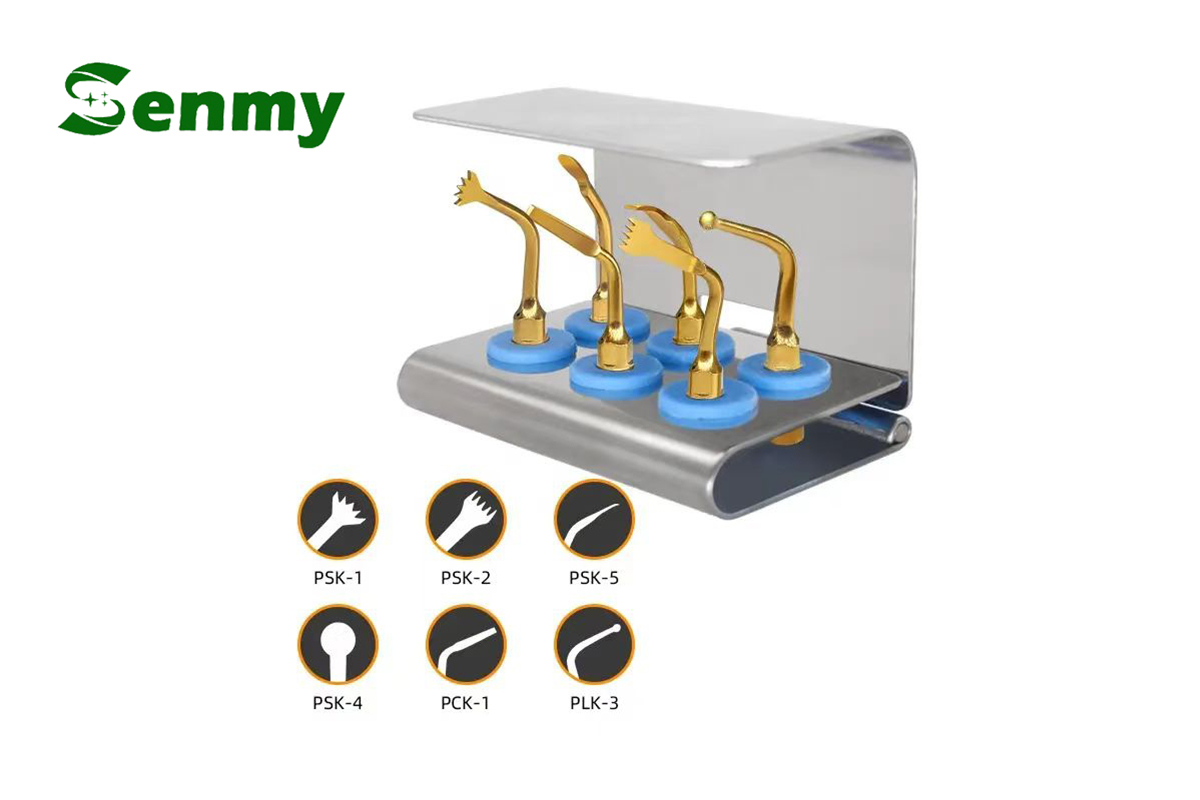

· Osteotome Tips: 6 pieces

· Scaler Tips: 2 pieces

· Irrigation Needles: 3 pieces

· Silicone Bases: 2 pieces

· Saline Tubes: 2 pieces

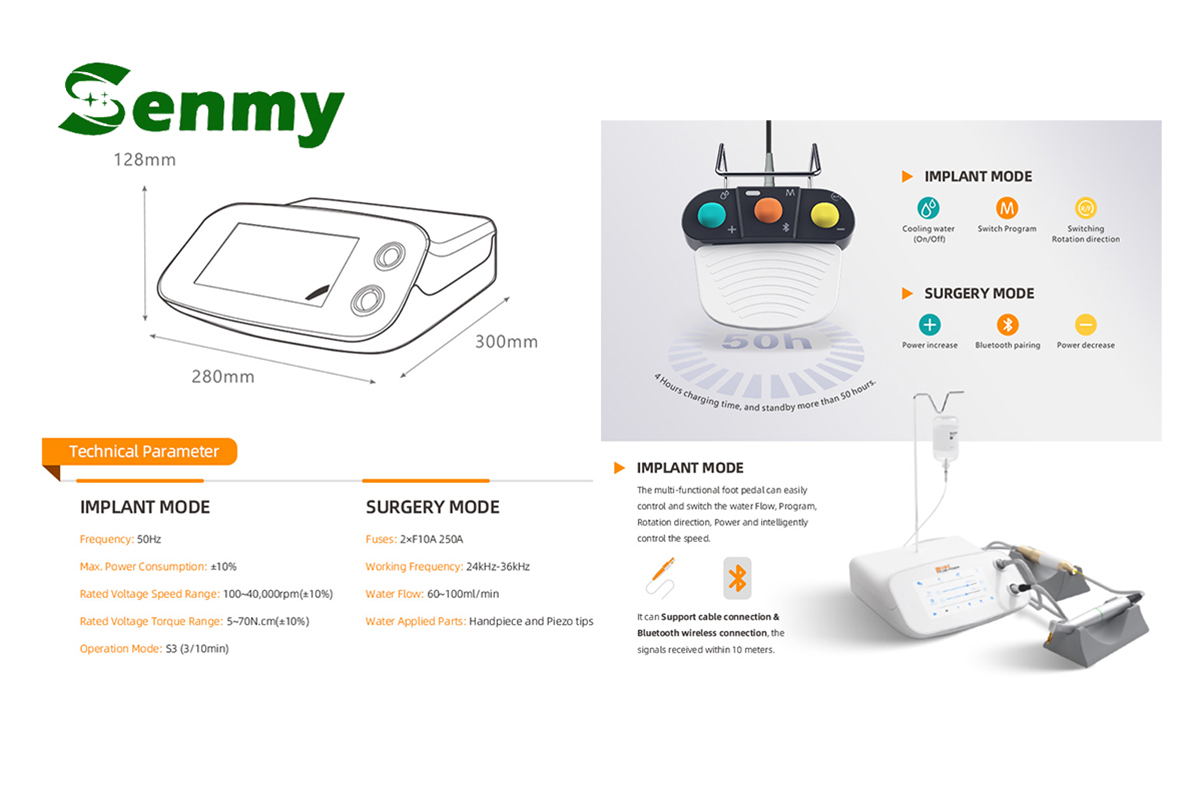

Technical Parameters

· Model of Machine: XLY-ZZJ300

· Voltage: 100-240V 50/60Hz 150VA

· Waterproof Grade: IPX4

· Allowable Motor Vibration: ±10%

· Maximum Power Consumption: 340VA

· Dimensions (mm) (Width * Depth * Height): 280x236x141

· Weight (Including Motor) (kg): 1.7kg

1. Implementation Mode

· Speed Range at Rated Voltage: 15-40,000 rpm (±10%)

· Torque Range at Rated Voltage: 5-70 N·cm (±10%)

· Cooling Water Flow: 0%, 25%, 50%, 75%, 100% (5 gears adjustable)

2. Surgical Mode

· Operating Frequency: 26-32Hz

· Water Flow: 60-135ml/min

· Cooling Water Flow: 0%, 25%, 50%, 75%, 100% (5 gears adjustable)

· Water Application Components: Handle and voltage electrode tip

Protection System and Trip Time of APC

· Handle Not Connected: 8ms

· Wiring Harness Disconnected: 8ms

· Protection Through Ground Discharge: 8ms

· Small Plug Broken or Not Properly Locked: <400ms

Operating Environment

· Ambient Temperature: +5°C - +40°C

· Relative Humidity: 30%-75%

· Atmospheric Pressure: 70kPa-106kPa
