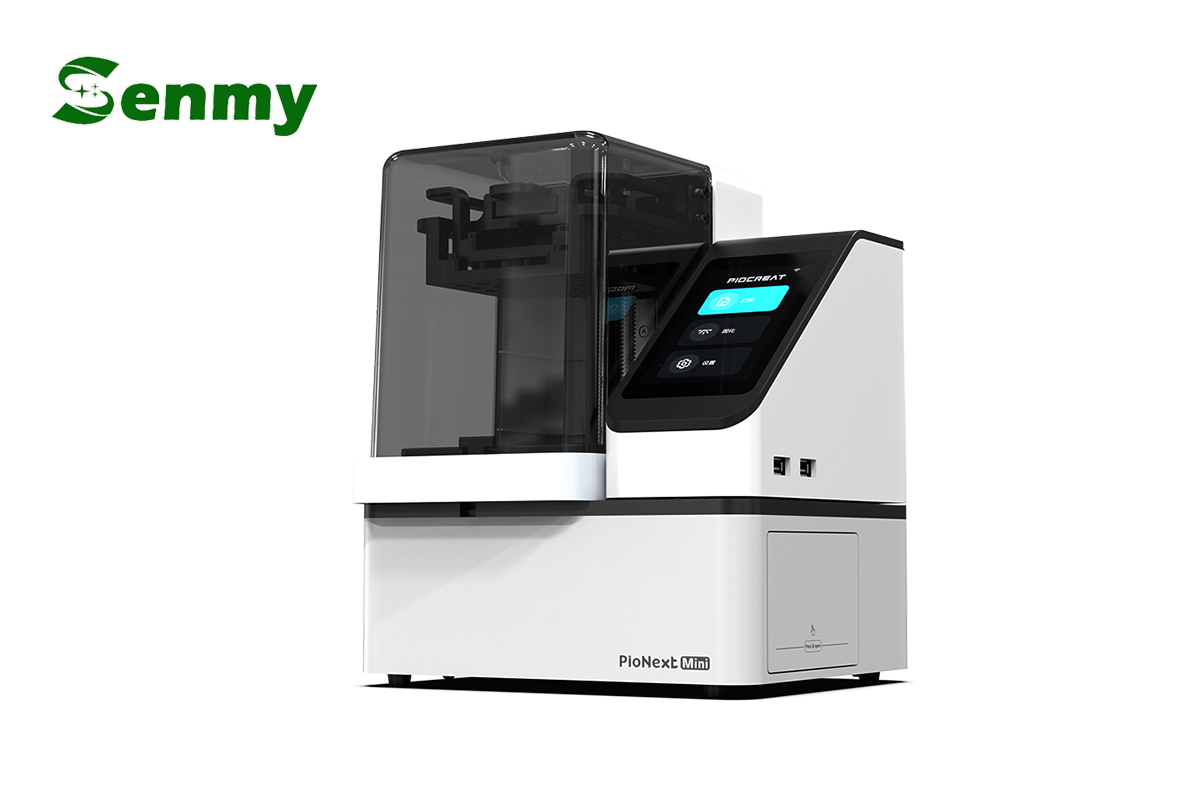

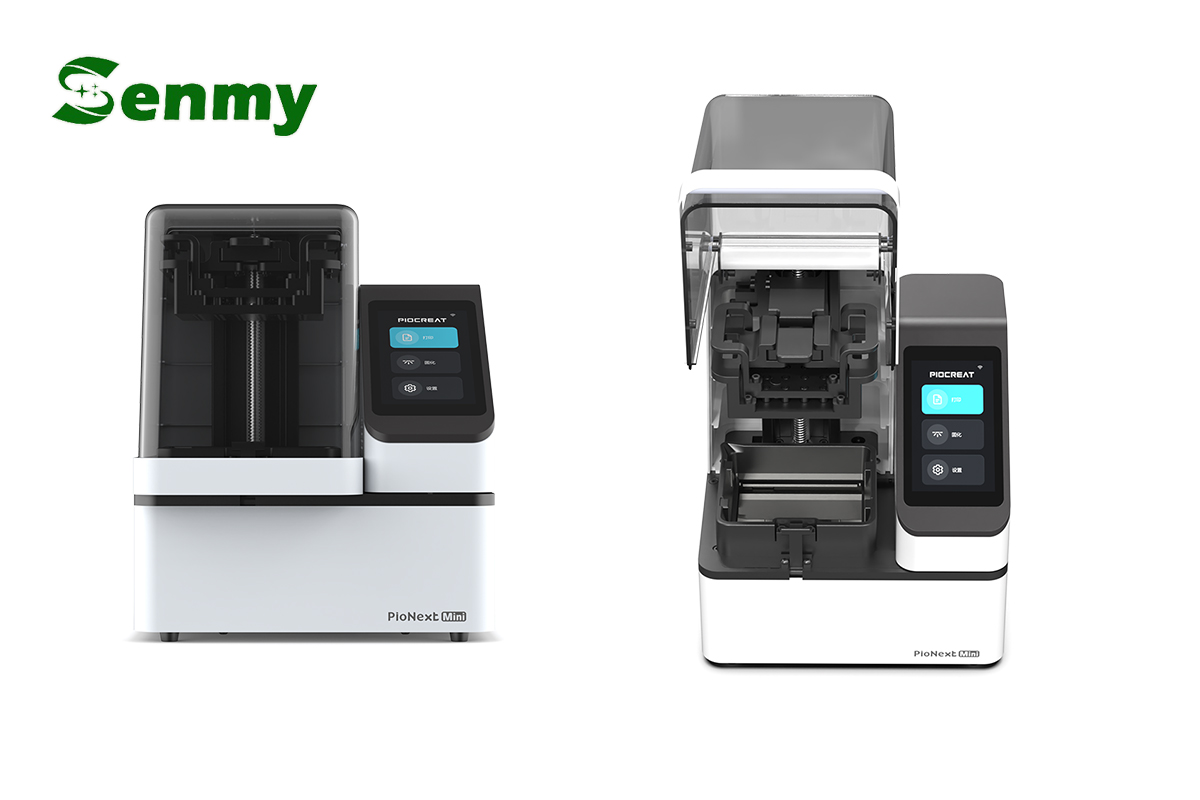

M506Pro Mini 3D Printer LCD

M506Pro Mini 3D Printer LCD

Product Parameters

# PioNext Mini

• Model: PioNext Mini
• Molding Technology: LCD
• Printing Size: 80×70×80mm

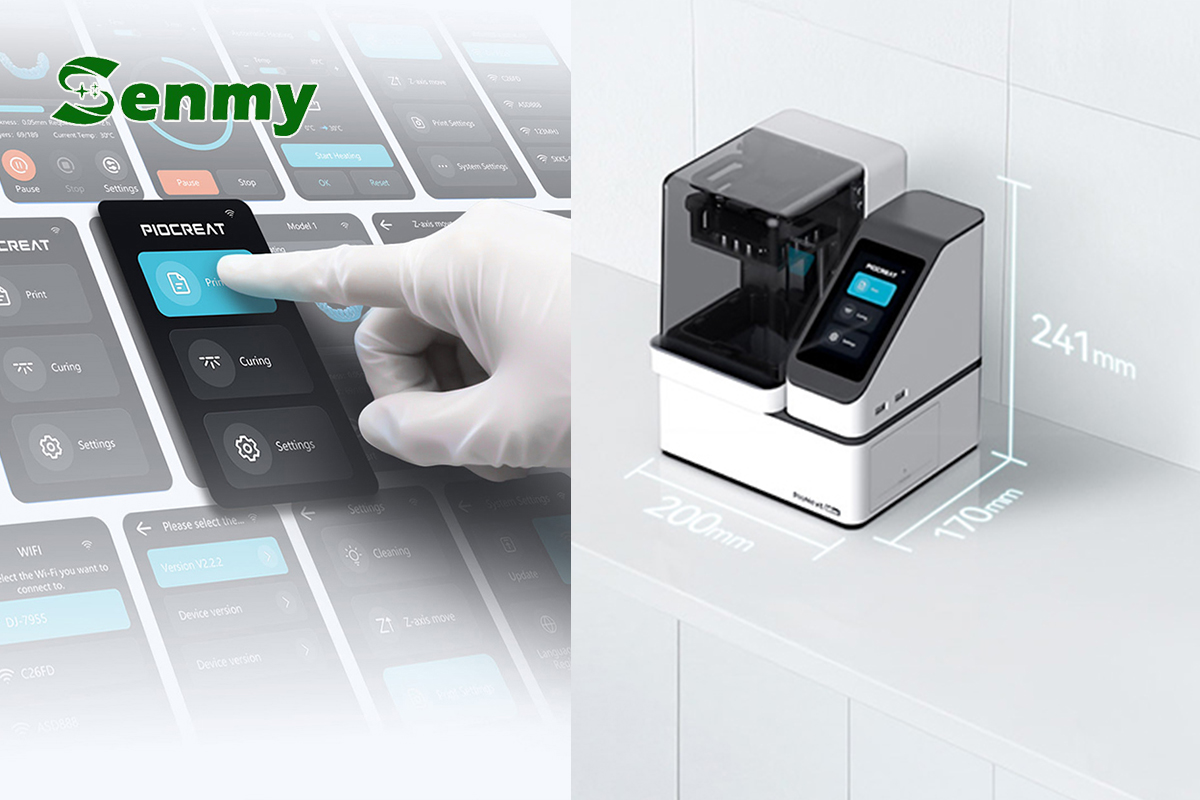

• Machine Size: 200×170×241mm
• Package Size: 310×307×340mm
• XY-axis Accuracy: 14*19μm
• Resolution: 8520*4320px
• Print Speed: Max.60mm/h(0.1mm layer thickness)
• Layer Thickness: 0.01-0.1mm
• Touch Screen: 3.97-inch Capacitive Color Touch Screen
• Languages: English, Chinese, German, Spanish, French, Italian,

Netherlands, Japanese, Korean,Polish, Portugal, Russian, Turkish

• Support Consumables: Ceramic Crown Resin/Surgical Guide Resin/Crown & Bridge Resin

/Temporary Restoration Resin/Denture Base Resin/Removable Die Model Resin

/Ortho Model Resin/Ortho Model 2.0 Resin

• Printing Method: U Disk / WiFi
• Slicer: Piocreat BOX (Win7/8/10 X64, MacOS)
• File Format: .cxline
• Rated Voltage: 100-240V~, 50/60Hz
• Rated Power: 120W
• N.W.: 4.86kg
• G.W.: 6.8kg

• Cleaning tank dimensions: 80×80×39mm
• Cleaning tank capacity: 150mL
• Cleaning tank material: S30408 stainless steel
• Product dimensions: 110×110×97mm
• Product weight: 0.281kg
• Rated voltage: 12V
• Rated power: 20W
