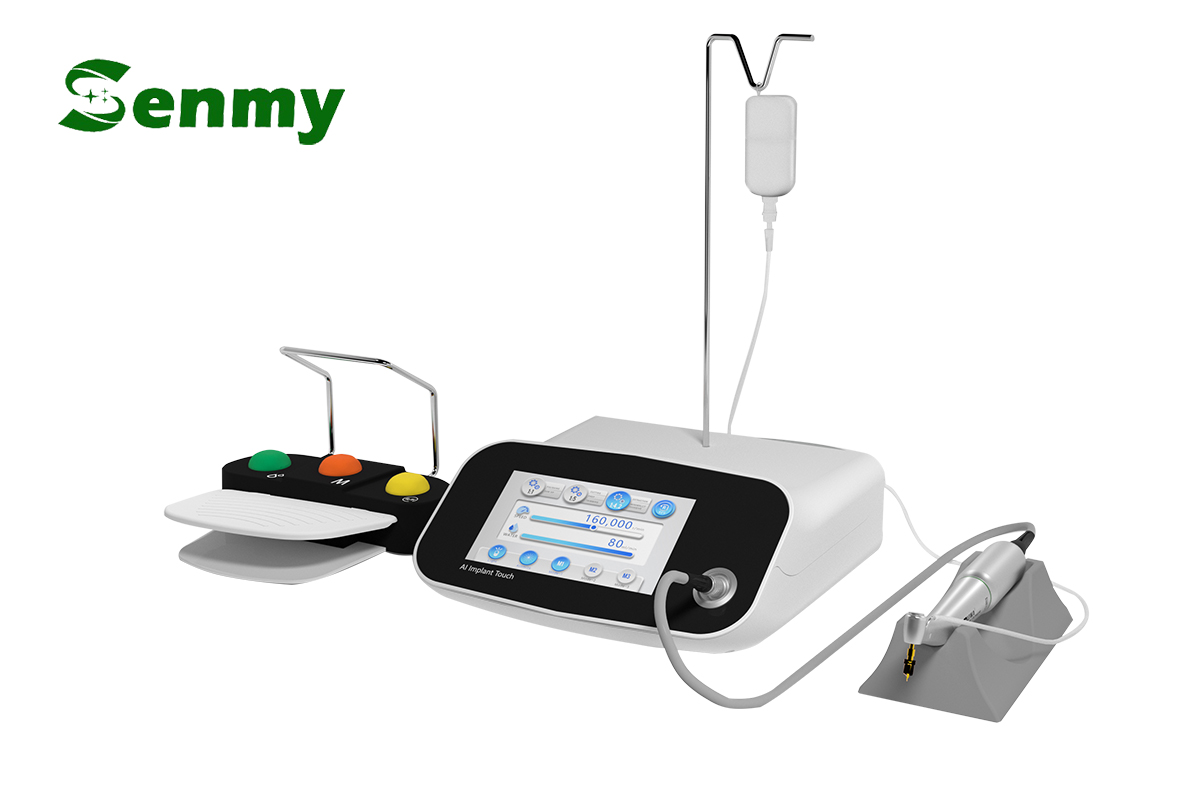

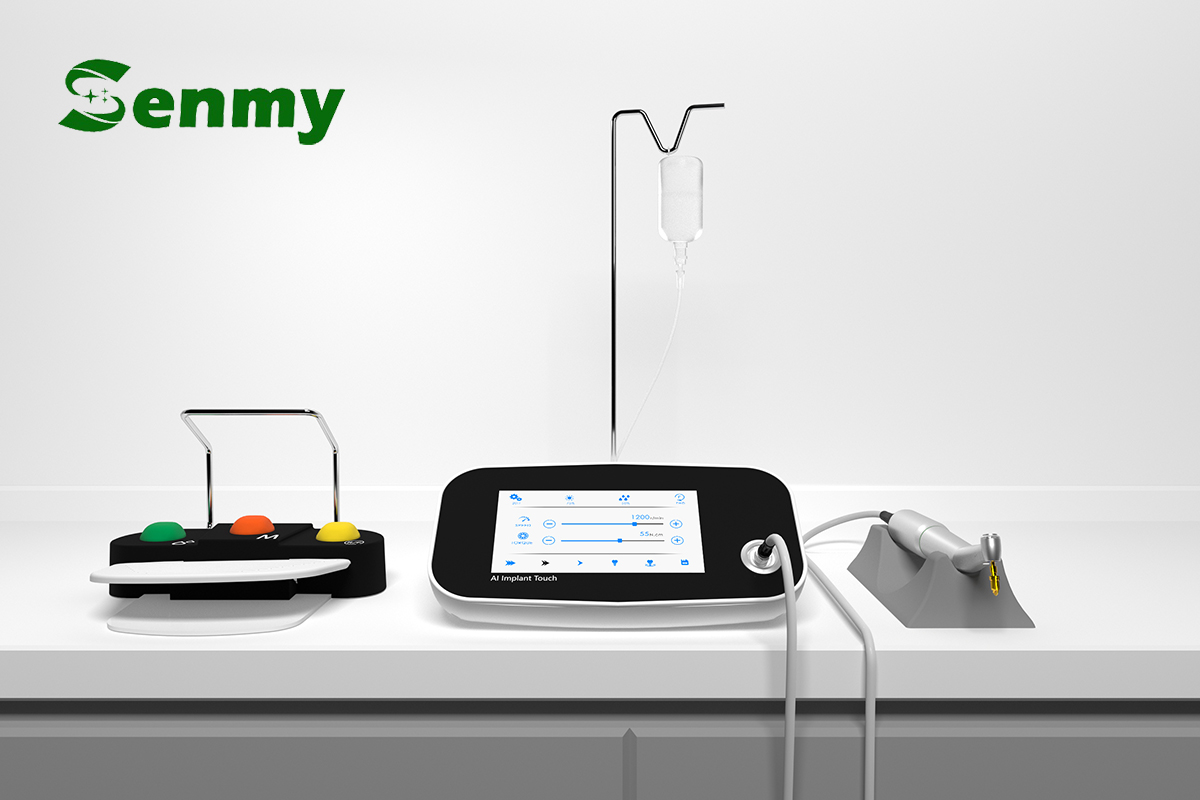

M402 Dental Implant Motor

Handpiece optional

Features:

1) Intuitive LCD display and control panel, which bring convenience to the operation;

2) Original imported brushless motor, which is characterized by great torque, low noise, non-vibrations as well as accuracy and can be sterilized by high temperature;

3) Alternative input supply voltage: AC100-110V or AC220-240V;

4) Multifunctional foot switch, which is not only handy to operate but also against cross-infection caused by the contact between hands and the device;

5) Adjustable rotation speed, torque, coolant flow and forward/reverse, which can meet various demands during implanting process;

6) Ten types of reduction control angles, which are able to be selected as you need for operations;

7) Ten kinds of program settings, each of which allows setting up different numerical values of rotation speed, torque, coolant flow, forward/reverse or reduction ratio for practical needs.

TECHNICAL SPECIFICATIONS:

1) Input Power Supply: AC100-110V or AC220-240V 50/60HZ;

2) Output Power: 210W;

3) Motor Rotation Speed Range: 1000rpm-30000rpm (1:1);

4) Torque Range: 5.0-55N.cm (20:1);

5) Coolant Flow: 0-100ml/min;

6) Stored Programs: 10 types;

7) Foot Switch Control: coolant flow, program forward/reverse, speed
